20-082740-01-3
Airborne bacteria −98.9 %
Tested 4–5 January 2021
Issued 6 January 2021
AIR STERILIZER
A picture frame
that sterilises the air
Sterilisation and purification built into a frame of solid hinoki wood. It does not look like a machine, and it works quietly all day.
In production
SterilisationAir purificationNatural phytoncideFrame · mirror · mood light
Korea Testing Laboratory (KTL) report 20-082740-01-3 · test standard KOUVA AS 02 : 2019 · tested 4–5 January 2021 · model HANIBARAM#1
MIRROR TYPE · FRAME TYPE
Fit a mirror and it is a mirror; slide in a photograph and it is a frame — and all the while it keeps cleaning the air
Four things, one unit
Bought separately, this would be four appliancesSterilisation
Ultraviolet light and a photocatalyst work together to reduce bacteria and viruses in the air. Verified by an accredited laboratory.
Air purification
Three stages — dust, fine dust and an antibacterial layer. The last stage is an H-13 grade HEPA filter.
Natural phytoncide
The whole case is solid hinoki. When the scent fades, a light mist of water brings it back.
Frame, mirror, mood light
Insert a photograph and it is a picture frame; use the mirrored face and it is a mirror; turn on the light and it is a lamp.
How it sterilises
Filter it, destroy it, then send it back out with a scentTen fan motors in all — four drawing in, six pushing out — every one of them designed in house
Trapping is not the same as destroying
A filter only holds what it catches. So that nothing multiplies inside the filter, the air passes through ultraviolet light and a photocatalyst before it leaves the unit.
Certified test results
Not our measurements — a national testing body's| Test item | Requirement (KOUVA AS 02 : 2019) | Result | Verdict |
|---|---|---|---|
| Airborne bacteria reduction | 80 % or more | 98.9 % | Pass |
Click the report to open the original
Korea Testing Laboratory (KTL) · test standard KOUVA AS 02 : 2019 · KTL fixed test chamber · model HANIBARAM#1.
These figures were measured under those test conditions and will vary with real-world use.
The tests were commissioned by the affiliated company JINTECH CO., LTD.;
HANIBARAM CO., LTD. manufactures and supplies the same product.

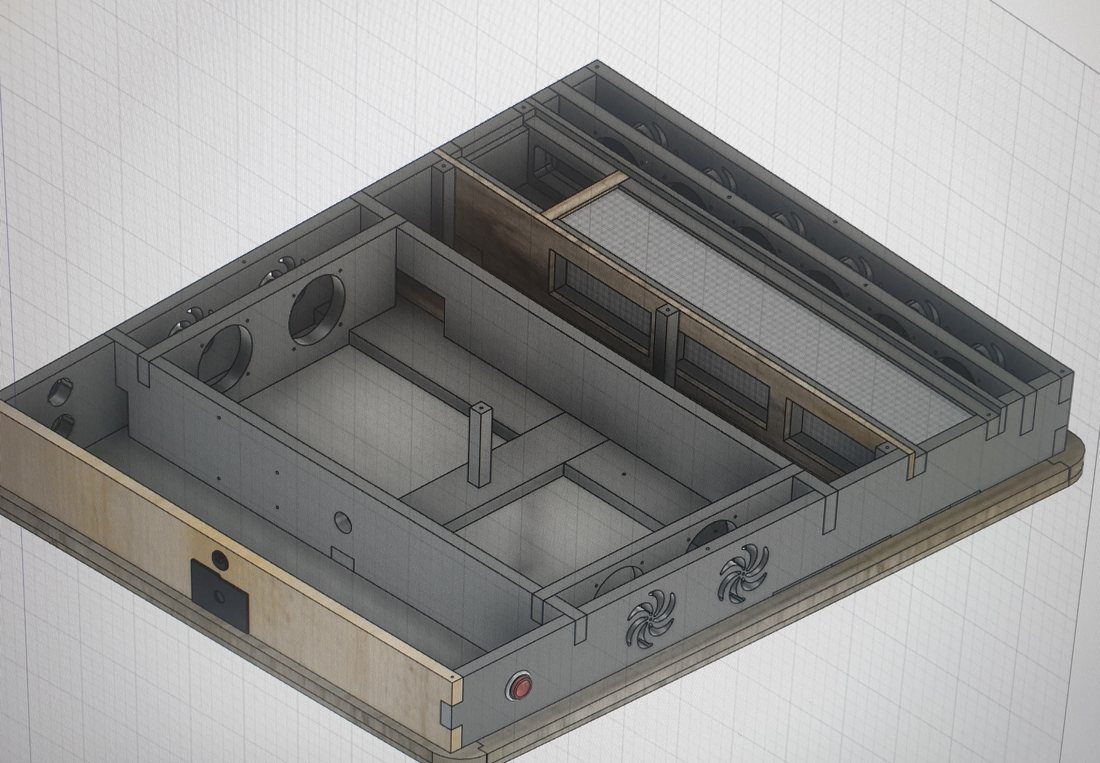

Inside and out
Designed and assembled by us
CRAFT
Every hinoki panel is cut and fitted in-house
FILTER
Release the catch to change the filter

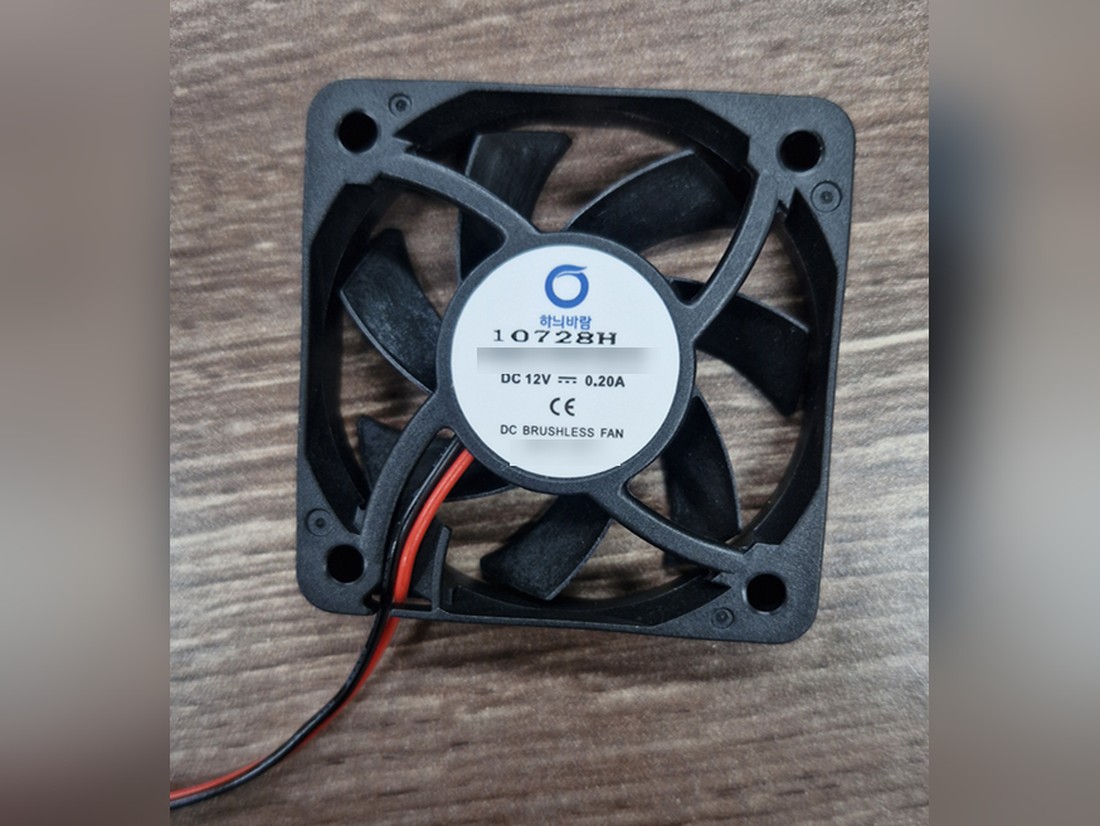

FAN MOTOR
Motor developed in house, with dual NMB bearings
Two forms
Choose the one that suits the space

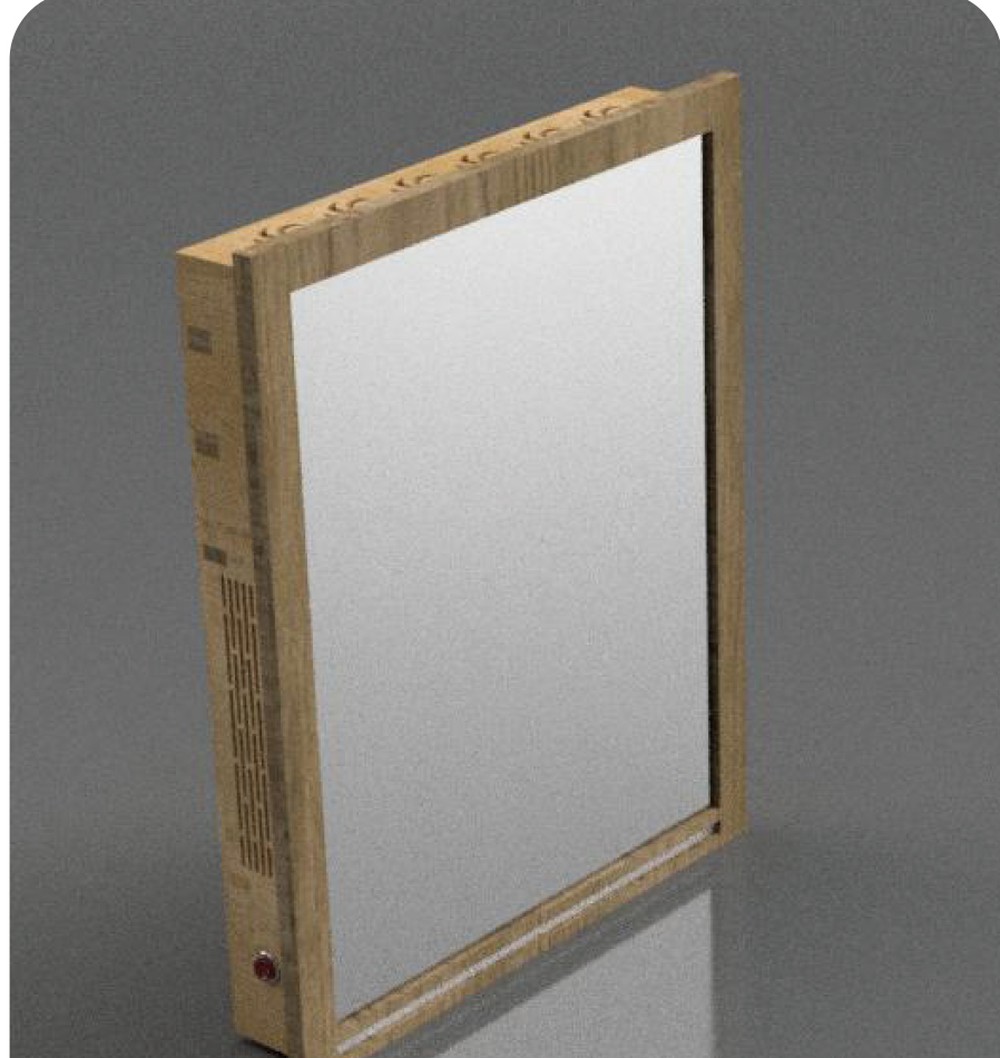

In production WALL TYPE
Wall-mounted
Fixed to the wall. At 9.5 cm deep it sits like a picture frame. Suited to larger rooms.
OfficesSchools · nurseriesHospitalsPublic buildings

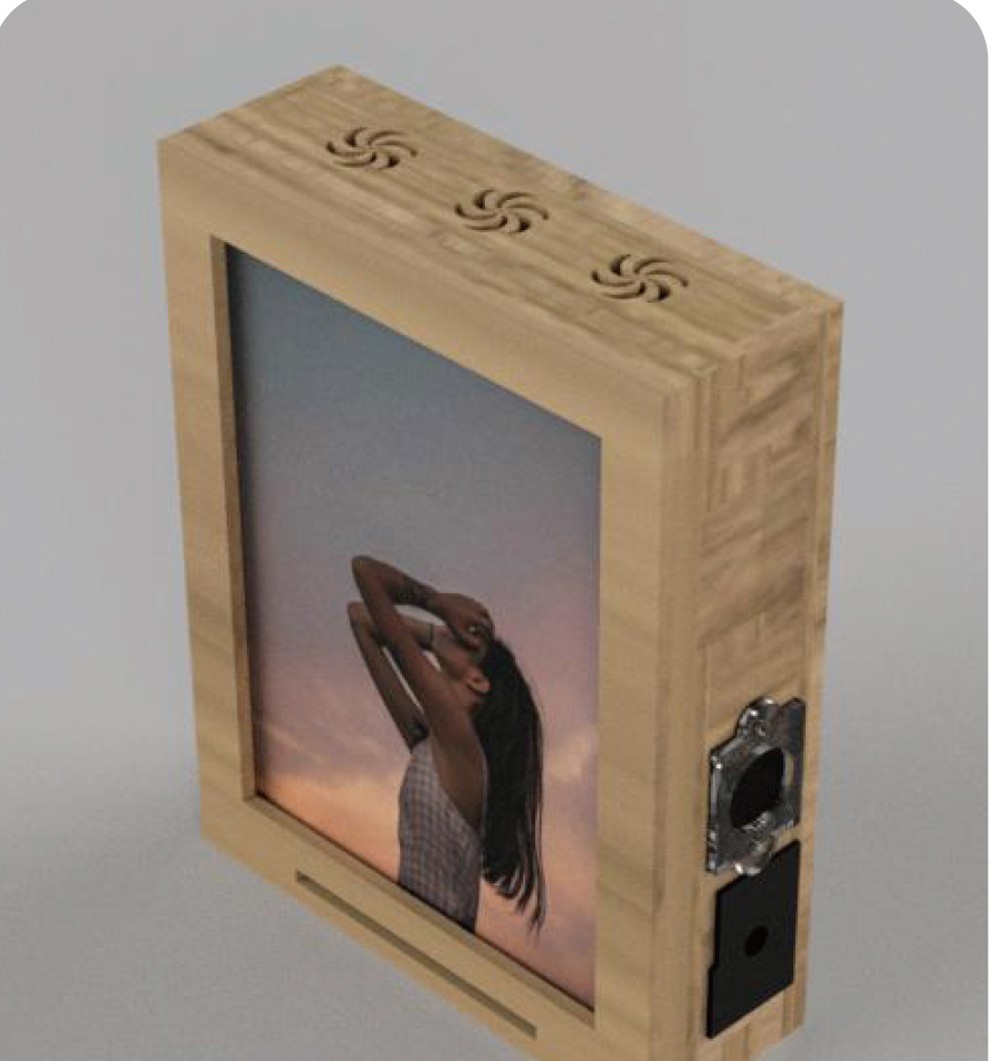

In production TABLE TYPE
Desktop
Stands on a desk or a shelf, cleaning the air right where you sit.
DesksBedsideSmall roomsShop counters
Specifications
| Depth | 9.5 cm |
|---|---|
| Filtration | Three stages — dust · fine dust · antibacterial (final stage H-13 HEPA) |
| Sterilisation | Ultraviolet (UV) + photocatalyst (TiO₂) |
| Fan motors | 10 — 4 intake · 6 discharge (developed in house · dual NMB bearings) |
| Speed | 5,500 ± 600 RPM |
| Discharge airflow | approx. 70 CFM |
| Noise | 48 dB at level 1 · 54 dB maximum |
| Fan motor life | 70,000 hours (about 8 years at 24 h/day) |
| Case | Solid natural hinoki |
| Front panel | Compressed tempered glass with anti-shatter film |
| Forms | Wall-mounted · desktop |
| Manufacture | Republic of Korea · built by hand |
SAFETY
It does not scatter if it breaks
The front is compressed tempered glass backed with anti-shatter film. It resists a hammer blow, and if it is forced apart the glass holds together rather than spreading in sharp pieces. We chose this specification with children's spaces in mind.
PLASTIC FREE
Less plastic
The case is solid hinoki instead of plastic — less plastic in the world, and natural phytoncide as a bonus.
Certification and patent
KOREA
KC
Korean electrical safety standard.

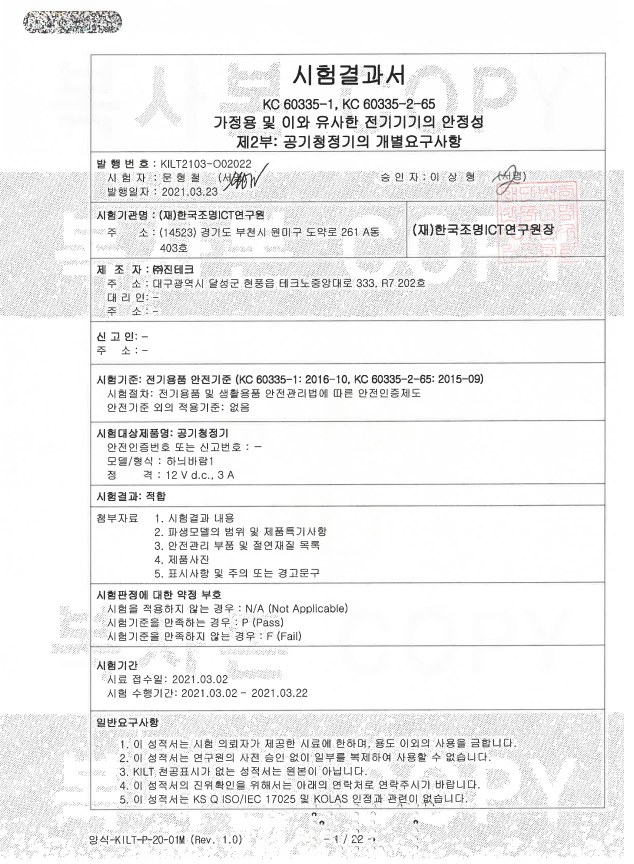

Korea Lighting & ICT Institute report
KILT2103-O02022 · 23 Mar 2021
USA

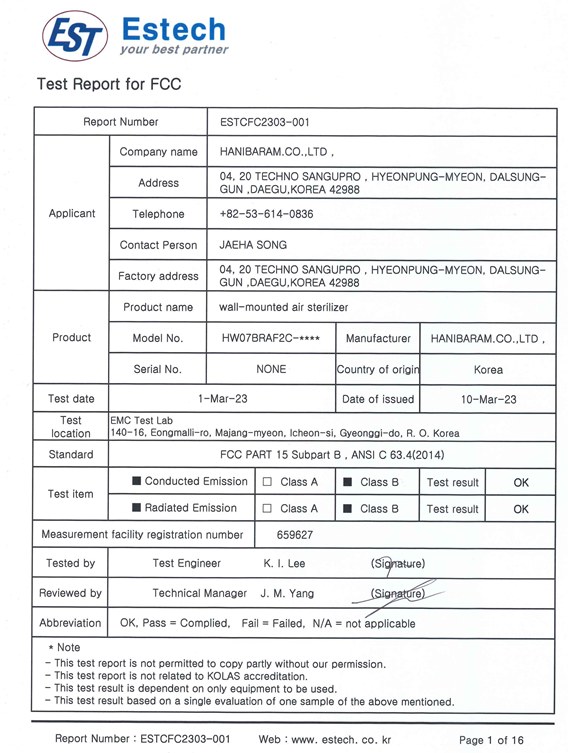

FCC
FCC Part 15 Subpart B, Class B.
ESTCFC2303-001 · 10 Mar 2023

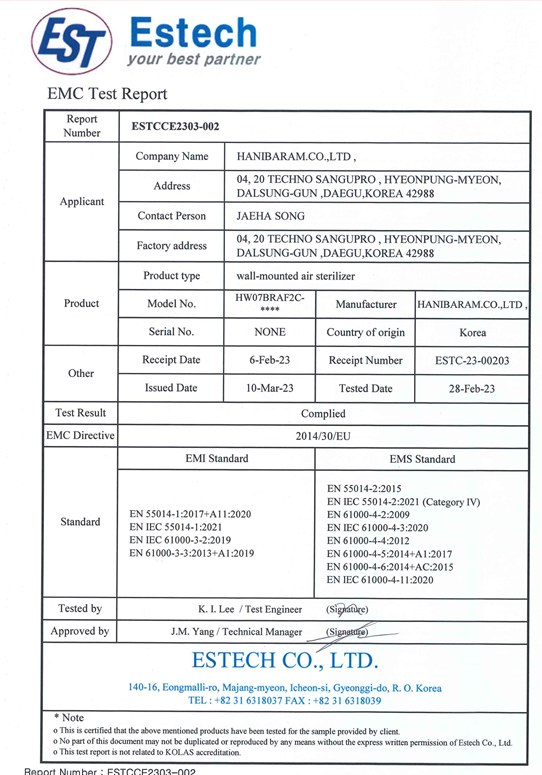

EUROPE
CE
EMC Directive 2014/30/EU, complied.
ESTCCE2303-002 · 10 Mar 2023

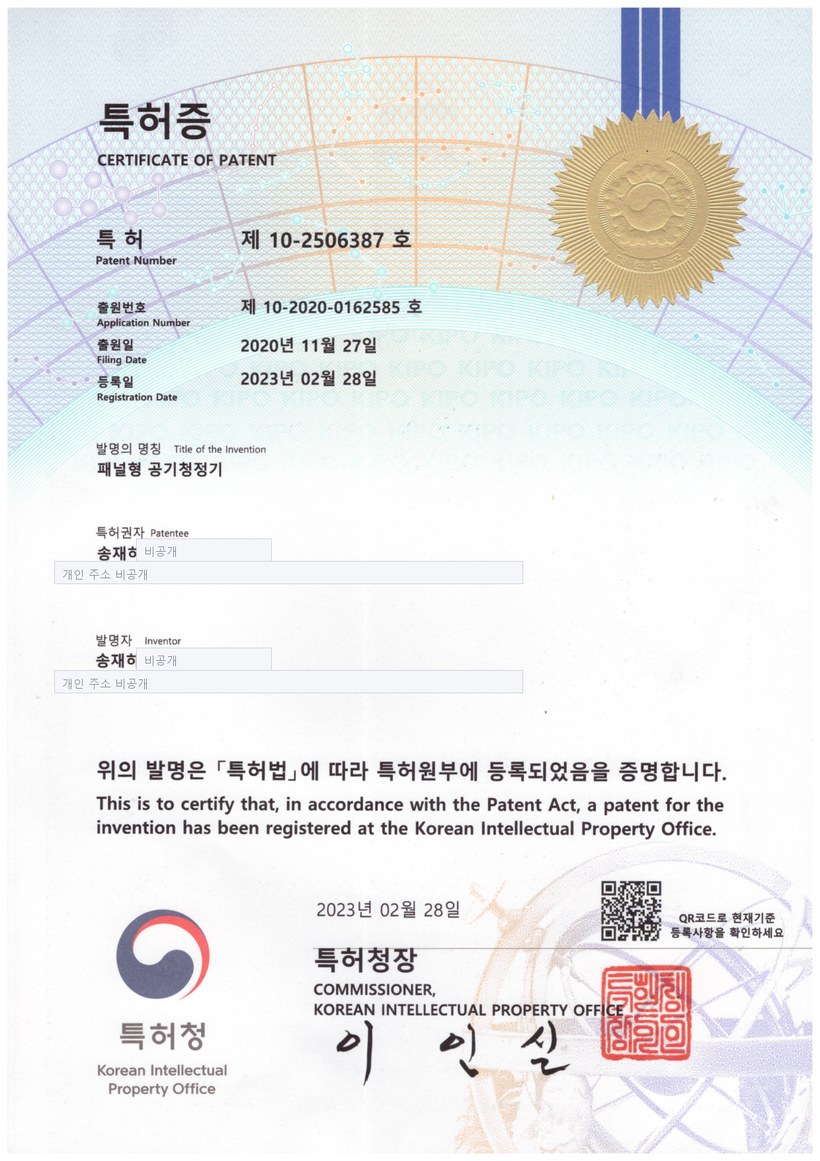

PATENT
KR 10-2506387
Panel-type air purifier
Filed 27 Nov 2020 · granted 28 Feb 2023
Click a certificate to see it full size
The patent above is registered in the name of CEO Song Jae-ha, and HANIBARAM CO., LTD. manufactures the product on that basis. See the full patent list →
BEFORE YOU ASK
Things worth saying up front
100 units a month
These are not stamped out by machine; people build them by hand. Current capacity is about 100 units a month. For larger orders, please talk to us about lead time first.
A new unit within the first year
If a defect appears within the one-year warranty we replace the unit rather than repair it. We set that policy because we are confident in the build.
The filter is a consumable

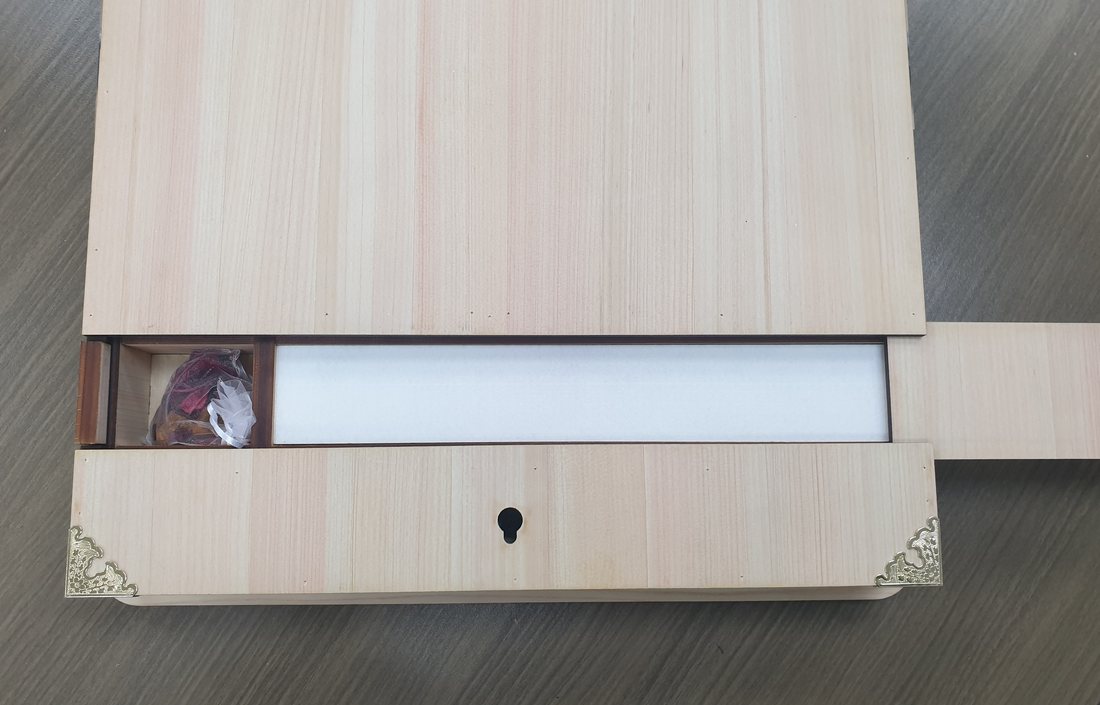

Release the side catch, lift the wooden screen, and the HEPA filter comes out. No tools needed.
